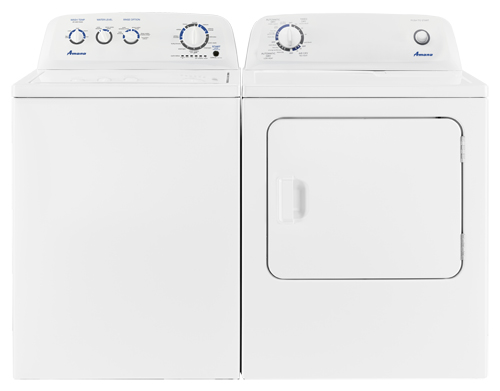

Amana Top-Load Washer (4.4 cu. ft.) & Gas Dryer (6.5 cu. ft.)

Details & Features

• Automatic Dryness Control
• Temperature sensors automatically stop the cycle when fabrics are dry to help reduce shrinking and overdrying as well as save on energy costs.
• Wrinkle Prevent Option
• Put a stop to wrinkles. After your clothes are dry, they tumble intermittently without heat to help stop wrinkles from forming.
• 6.5 Cu. Ft. Capacity
• 6.5 cu. ft. Capacity can help take a load off your mind.
• 11 Dryer Cycles
• 3 Temperature Settings
• Choose a drying temperature based on the fabrics in your load with three different temperature settings; High, Low and Air Dry.
• Reversible Door
• Easily install this Reversible Door to open to the left or right.

• 6.5 cu. ft. Dryer Capacity
• Dry Level Option
• Cool Down Cycle
• Timed Dry Cycles

Tech Specs

Configuration and Overview
Maximum Vent Length	64
Venting Direction	Rear Only
Fuel Type	Gas
Energy Star® Qualified	No
Amps	15 or 20
Hz	60
Volts	120
Cycle and Options
Dryer Cycle Selections	10 min Air Dry, 20 min Air Dry, AutoDry - High, AutoDry - Low, Automatic Dry, Energy Preferred, Less Dry, More Dry, Timed Dry 20, Timed Dry 40, Timed Dry 60
Number of Dryer Cycles	11
Cycle Time Remaining	No
EcoBoost™/Energy Saver	No
Lint Filter Indicator	No
Maytag Commercial Technology Components	No
Sound Package	No
Dryer Option Selections	Temp High, Temp Low
Temperature Selections	High, Low, No Heat
Number of Temperatures	0
Controls
Control Type	Dials
Electronic Display Type	No
Automatic Temperature Controls	Yes
Drum Material	Powder Coat
Drying Rack	No
Interior Light	No
Pedestal Options	No
Stackable	No
Steam Hose Y Connector	No
Feedback-Status Indicators	No
Dryness Levels Selections	Energy Preferred, More, Less
Number of Dryness Levels	3
Dimensions
Depth With Door Open	51
Depth	28 1/4
Height	44
Width	29
Maximum Height	44
Minimum Height	42
Capacity	6.50

Manuals

DIMENSION GUIDE

INSTALLATION GUIDE

OWNER MANUAL

WARRANTY INFORMATION

Details & Features

• High-Efficiency Agitator and Wash System
• The High-Efficiency Agitator and Wash System hit dirt hard, but are gentle on clothes for efficient cleaning action.
• Automatic Fabric Softener Dispenser
• The easy-to-fill Automatic Fabric Softener Dispenser releases fabric softener from the HE agitator at just the right time, so you don t have to worry about missing the rinse cycle.
• Stainless Steel Wash Basket
• The durable Stainless Steel Wash Basket has a smooth, modern finish, helping prevent snags that can ruin clothes.
• Quick Wash Cycle
• Is your favorite outfit in the hamper? Use the Quick Wash Cycle to wash light loads fast.
• Large Capacity
• Pile it in and get the most out of the 3.8 cu. ft. Large Capacity to take on every load.
• Deep Water Wash Option
• The Deep Water Wash Option¹ adds the maximum amount of water for your laundry load, so you can clean with confidence.
• Late Lid Lock
• No sock left behind. The Late Lid Lock gives you extra time to throw in any missed items before the Spin Cycle starts.
• Extra Rinse Option
• The Extra Rinse Option adds more rinse action to most wash cycles to help remove extra soil or detergent.
• Advanced Suspension System
• The Advanced Suspension System senses each load and stabilizes the wash basket to cut down on racket caused by noisy, unbalanced loads.
• Cold Wash Cycle
• Keep it cool. The Cold Wash Cycle uses cold water to help care for fabrics and prevent color loss.
• Delicates Cycle
• The Delicates Cycle uses a slower spin speed and a gentle wash motion to clean delicate items.
• Bulky Cycle
• The Bulky Cycle adds extra wash motion so larger items, like bedspreads, get plenty of movement throughout the cycle.
• 12 Wash Cycles
• Choose from 12 Wash Cycles to help make laundry day a breeze.
• 5 Temperature Settings
• 5 Temperature Settings help make sure the wash water is just the right temperature for every load.
• An American Company for Over 100 Years
• Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

Tech Specs

Configuration and Overview
CEE Tier	Not Rated
UL	Yes
Capacity	3.80
Capacity (IEC)	4.4
Amps	15
Hz	60
Volts	120
Cycle and Options
Number of Wash Cycles	12
Washer Cycle Selections	Bulky/Sheets, Clean Washer with affresh, Colors, Colors with Soak, Delicates, Drain & Spin, Heavy Duty, Normal, Quick Wash, Rinse & Spin, Whites, Whites with Soak
Pre Soak	No
Spin Speeds	2
Temperature Selections	Cold, Cool, Hot, Tap Cold, Warm
Number of Temperatures	5
Water Factor	6.01
Maximum Spin Speed	680
Style and Extras
Display Type	No
Drum Material	Stainless Steel
Motor Drive Type	Belt
Pedestal Options	No
Out of Balance Sensing	Yes
Sound Package	No
Suspension System	4 Springs 4 Dampers
Feedback-Status Indicators	Cycle Complete, Fill, Final Spin, Lid Lock, Rinse, Sensing, Wash
Advanced Vibration Control	Yes
Auto Load Size Sensing Technology	Yes
Dimensions
Height	44
Width	27 1/2
Depth	27
