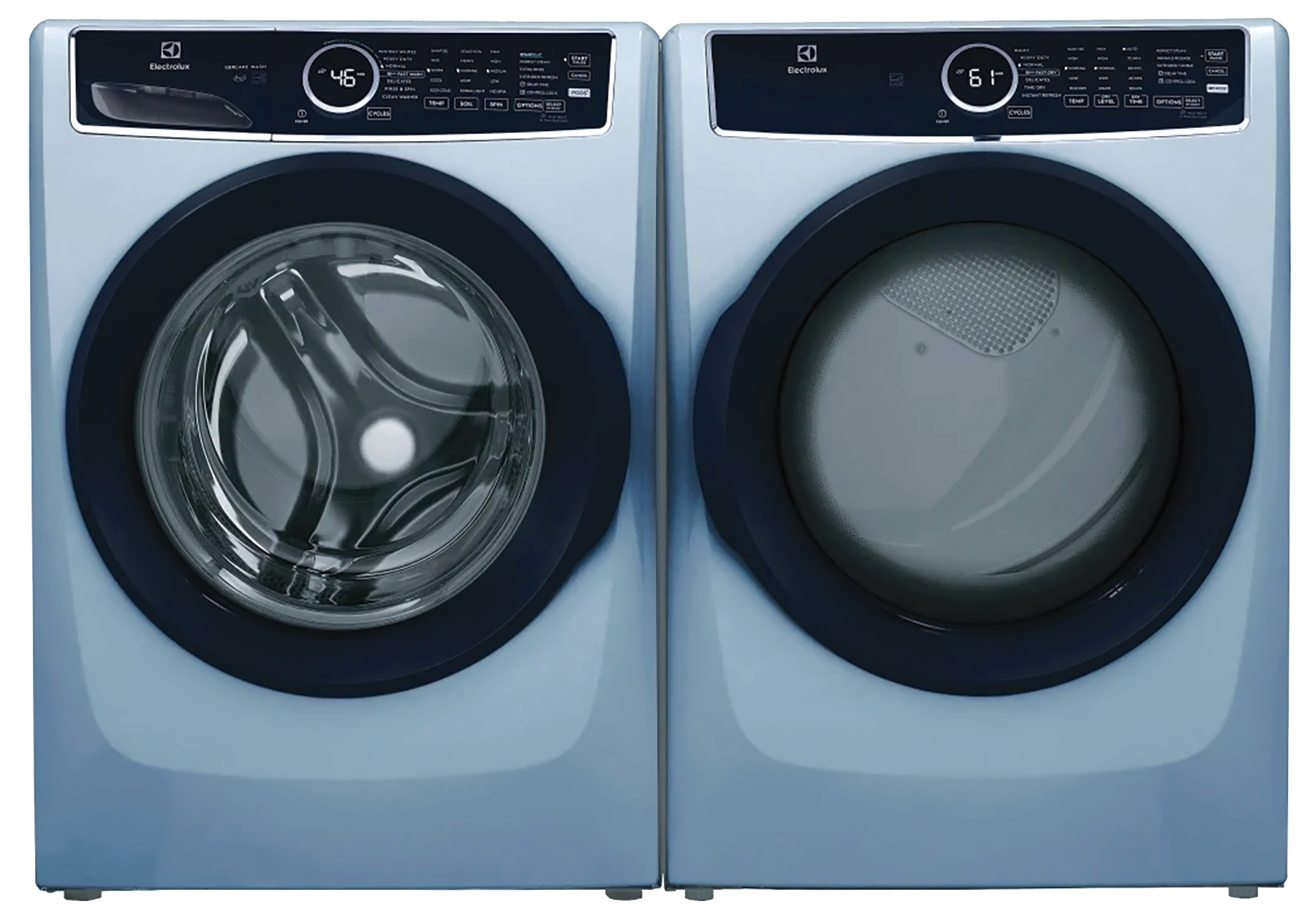

Electrolux Laundry Front Load Perfect Steam Washer with LuxCare & Perfect Steam Electric Dryer

Details & Features

• Keeps clothes looking their best without over drying
• Clothes are gently tumbled while moisture sensors detect when clothes are dry to prevent over-drying.
• Instant Refresh cycle revives fabrics without washing
• Save water and energy with Instant Refresh which removes wrinkles and refreshes items from light wear in 10 minutes, without having to do a full wash.
• 18-Minute Fast Dry
• Quickly dry the items you need most. * Fastest time based on smallest load/Fast Dry cycle selected for various load compositions.
• Eco-friendly normal cycle
• Our dryers are designed with the environment in mind; our normal cycle is eco - with the option of adding dry boost if you need it.
• ENERGY STAR™ Certified
• Electrolux dryers meet strict criteria to guarantee high-quality, energy-efficient performance.
• Perfect Steam™ option
• Gently release wrinkles and reduce static to keep clothes looking their best.
• Extended Tumble option keeps clothes tangle-free
• Gently tumbles your clothes without heat to keep them tangle-free--perfect for when you cannot remove clothes right after the cycle ends.
• LuxCare™ Lint Shield helps avoid messes
• Traps lint so it doesn't make a mess, even if you empty it while there are clothes in the dryer.
• Extra Large Capacity
• Dry more in each load with our 8.0 Cu. Ft. dryers.
• Fits more rooms with reversible door
• Enjoy easy loading no matter how your washer and dryer are configured.
• Optional pedestals and stacking kit for more installation options
• Raise your units with optional pedestal drawers that provide extra storage. Or use the optional stacking kit for convenient placement in small spaces.
• Brilliant LED display shines in even the darkest laundry rooms
• Our beautifully bright display illuminates information on cycles and lets you know how much time is left.
• Luxury-Quiet™ Sound System
• So quiet you can run it whenever you want without disrupting your household.
• Control Lock
• To help avoid unwanted use.
• Platinum Star™ Limited Warranty
• Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts. * One-year standard parts warranty plus an additional year with product registration within 60 days of purchase. See limited warranty for details.

Tech Specs

Product Line	Dryer
Power Type	Electric 240v
Installation Type	Free-Standing
Factory	Juarez
Color	Glacier Blue
Dryer
Air Flow	200 CFM
Drum Back Type	Painted Steel
Drum Material	Painted Steel
Dryness Level Selections	Yes
Lint Filter	Yes
Moisture Sensor	Yes
Dryer Cycles
Cycle Count	7
Bulky	Yes
Delicates	Yes
Séchage rapide	Yes
Heavy Duty	Yes
Instant Refresh	Yes
Normal	Yes
Timed Dry Time	Yes
Dryer Options
Delay Start Time	1-12 Hours
Dry Boost	Yes
Extended Tumble	Yes
Perfect Steam	Yes
Wrinkle Release	Yes
Drying Temperatures
Low	Yes
Normal	Yes
High	Yes
Sanitize	Yes
Eco Dry	Yes
Dryness Level
Max	Yes
High	Yes
Normal	Yes
Low	Yes
Damp	Yes
Controls
Cancel	Yes
Control Lock	Yes
Cycle Status Lights	Yes
Delay Start	Yes
Estimated Time Remaining	Yes
Pause Function	Yes
Power On/Off	Yes
Start	Yes
Exterior
Door Latch	Yes
Reversible Door	Yes
Dimensions and Volume
Height	38"
Width	27"
Depth	32"
Dryer Drum Capacity	8 Cu. Ft.
Dry Linen Capacity Tested Amount	11.5 kg
Electrical Specifications
Minimum Circuit Required	30 Amps
Voltage Rating	208/240v
Energy Data
Combined Energy Factor (CEF)	3.48
kWh/cycle	2.5 kWh
kWh/year	620 kWh
Installation
Optional Pedestal	Yes
Power Cord Included	Yes
Ventilation Type	Vented
General Specifications
Chime On / Chime Off	Yes
Leveling Legs	Yes
Product Weight	126 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Performance Certifications and Approvals
ENERGY STAR Certified	Yes
UL Listed	Yes

Manuals

PRODUCT SPECIFICATIONS SHEET (EN)

CANADIAN PRODUCT SPECIFICATIONS SHEET (EN)

FEUILLE DE SP(EBACK)CIFICATIONS DU PRODUIT (FR)

ENERGY GUIDE (EN, FR)

QUICK START GUIDE (EN)

GUIDE DE D(EBACK)MARRAGE RAPIDE (FR)

GU A DE INICIO R PIDO (ES)

INSTALLATION INSTRUCTIONS (EN, FR, ES)

COMPLETE OWNER'S GUIDE (EN)

GUIDE D'UTILISATION COMPLET (FR)

TARJETA CONECTADA (ES)

ENERGY GUIDE (EN, FR)

Details & Features

• Thorough cleaning with the LuxCare™ Wash System
• Our LuxCare™ Wash System offers a thorough clean with improved wash actions, temperature control, and smart load sensing.
• World's first Adaptive Dispenser™ designed to accept PODS™
• Get a powerful clean no matter what type of detergent you prefer with the Adaptive Dispenser™.
• 18-Minute Fast Wash
• Quickly deep clean the items you need most. * Fast time based on 3 lb. DOE load.
• Perfect Steam™ removes tough stains
• Our Perfect Steam™ rises from the bottom, gently lifting dirt and stains from fibers.
• StainTreat™ option gently and effectively removes stains
• Optimizes the temperature, tumbling actions, and cycle time for optimal stain-removing conditions.
• Remove bacteria with the Sanitize setting
• Certified to kill and remove 99% of bacteria. * Our products meet the NSF™ testing standards
• Solid Soil level cleans caked on stains
• The Solid Soil level gives you a deeper clean to get rid of the tough stains that get caked on, like mud or dirt.
• ENERGY STAR™ Certified
• Electrolux washers meet strict criteria to guarantee high-quality energy efficient performance-without sacrificing clean.
• 10-Year Motor Warranty plus Lifetime Tub Warranty
• Rest easy knowing your washer is backed by a 10-year motor and lifetime tub warranty.
• Perfect Balance™ System & Second Floor Guarantee
• Balances loads for smooth, quiet operation so you can run it whenever you want without disrupting your household. * As tested on conventional wood floor construction with vinyl floor covering.
• Fits more rooms with flexible installation
• With reversible washer door, four-way recessed venting, and a standard 27" platform, our products are designed to fit just about anywhere you want to put them.
• Extra Large Capacity
• Easily cleans a king-sized comforter with extra large 5.2 Cu. Ft. I.E.C. drum
• Extended Refresh
• Adds a rinse and spin after the wash cycle to keep garments fresh until you can switch them to the dryer.
• Automatic Water-Level Adjustment
• Washer automatically modifies water levels to amount of clothes in unit.
• More installation options
• Raise your units with optional pedestal drawers that provide extra storage. Or use the optional stacking kit for convenient placement in a closet or small space.
• Brilliant LED display shines in even the darkest laundry rooms
• Our beautifully bright display illuminates information on cycles and lets you know how much time is left.
• Luxury-Design™ Lighting
• Provides visibility inside your washer, so you can conveniently find any article of clothing.
• Delay Start
• Adjust washer start time to meet your lifestyle needs.
• Control Lock
• Ensures washer remains closed while cycle is running.
• Platinum Star™ Limited Warranty
• Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts. * One-year standard parts warranty plus an additional year with product registration within 60 days of purchase. See limited warranty for details.

Tech Specs

Product Line	Front Load Washer
Power Type	Electric 120v
Installation Type	Free-Standing
Factory	Juarez
Color	Glacier Blue
Washer
Drum Light	No
Drum Material	Stainless Steel
Maximum Spin Speed	1300 RPM
Water Heater	Yes
Water Level Adjustment	Yes
Washer Cycles
Cycle Count	7
Clean Washer	Yes
Delicates	Yes
Fast Wash	Yes
Heavy Duty	Yes
Normal	Yes
Rinse and Spin	Yes
Whitest Whites	Yes
Washer Options
Delay Start Time	1-12 Hours
Extended Refresh	Yes
Extra Rinse	Yes
Perfect Steam	Yes
Stain Treat	Yes
Steam	Yes
Soil Levels
Extra Light	Yes
Light	Yes
Normal	Yes
Heavy	Yes
Solid Soil	Yes
Temperature Settings
Eco Cold	Yes
Cool	Yes
Warm	Yes
Hot	Yes
Sanitize	Yes
Washer Spin Speeds
Spin Speed Selections	5
Max	Yes
High	Yes
Medium	Yes
Low	Yes
No Spin	Yes
Dispenser
Bleach Dispenser	Yes
Detergent Dispenser	Yes
Fabric Softener Dispenser	Yes
Prewash Detergent Dispenser	Yes
PODs Dispenser	Yes
Controls
Cancel	Yes
Control Lock	Yes
Cycle Status Lights	Yes
Delay Start	Yes
Pause Function	Yes
Power On/Off	Yes
Start	Yes
Exterior
Door Latch	Yes
Reversible Door	Yes
Dimensions and Volume
Height	38"
Width	27"
Depth	32"
Washer Drum Capacity I.E.C.	5.2 Cu. Ft.
Dry Linen Capacity Tested Amount	11.5 kg
Electrical Specifications
Minimum Circuit Required	15 Amps
Voltage Rating	120 V
Energy Data
Integrated Water Factor	3.2
kWh/cycle	0.29 kWh
kWh/year	85 kWh
Modified Energy Factor	2.92
Water Usage/Year	4248 Gallons
Installation
Optional Pedestal	Yes
Power Cord Included	Yes
Stackable	Yes
General Specifications
Chime On / Chime Off	Yes
Leveling Legs	Yes
Product Weight	217 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Motor	10 Years
Warranty - Parts	1 Year
Warranty - Tub	Lifetime
Performance Certifications and Approvals
CEE Tier	Tier 2
ENERGY STAR Certified	Yes
High Efficiency	Yes
NSF Certified	Yes
UL Listed	Yes
