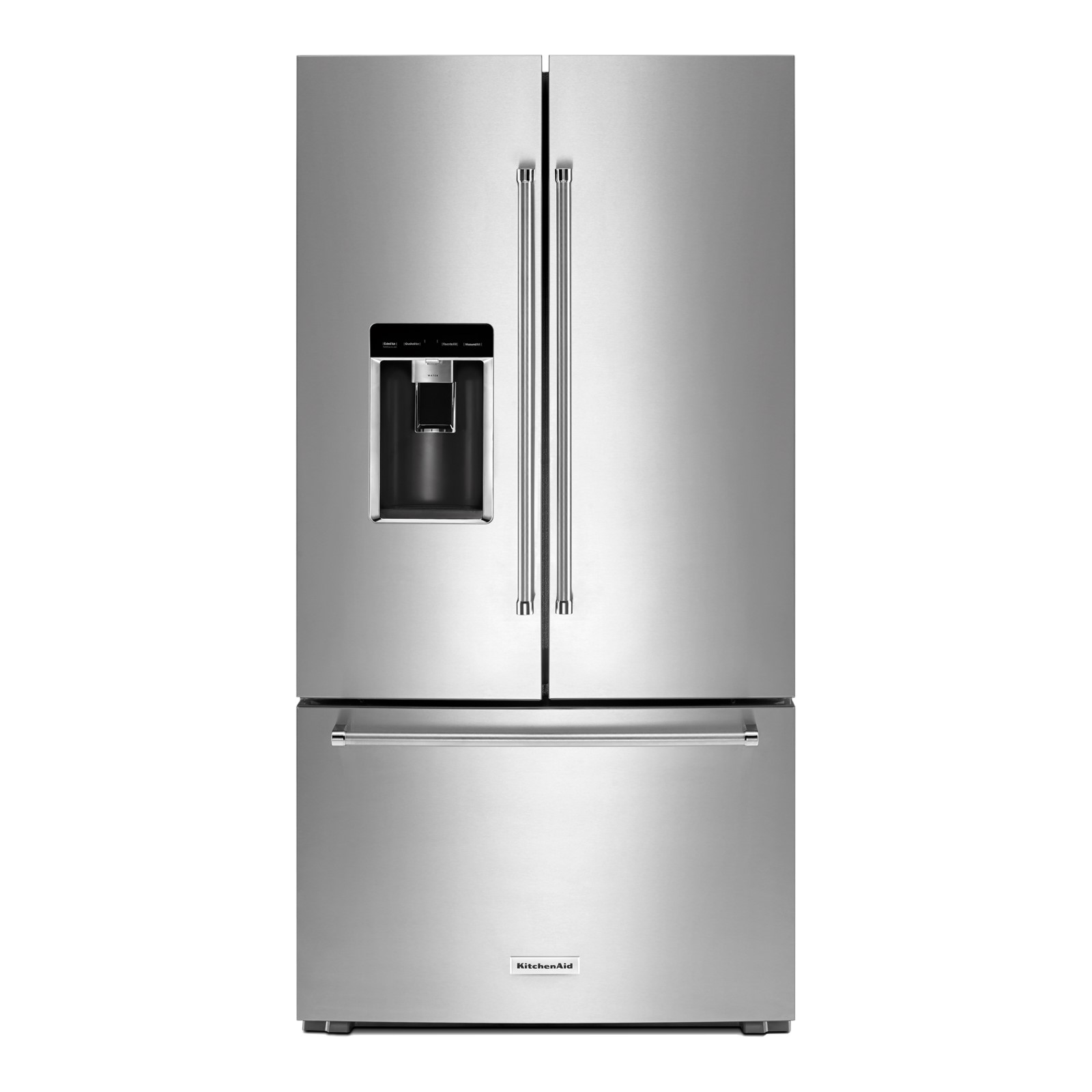

KitchenAid 5 Piece Kitchen Appliances Package with French Door Refrigerator and Dishwasher in Stainless Steel

Details & Features

• Preserva™ Food Care System with Linear Compressor
• Provides the height of food preservation with independent cooling systems for the refrigerator and freezer plus a Produce Preserver to help keep food at its peak. The Linear Compressor offers minimal temperature variations and an efficient cooling system, making this our quietest free-standing refrigerator.
• Under-Shelf Prep Zone
• Utilizes empty space beneath the shelf to create a prep zone ideal for dough, desserts or marinating meats. 6" x 10" x 2" slide-out pan is oven- and dishwasher-safe, and easily transitions from fridge to oven so you can stay in the creative flow.
• Slide-Away Shelf
• features a versatile design that allows three-quarters of the shelf to retract to accommodate taller items, such as wine bottles, up to 16.75 inches. This flexibility offers tall-item storage space and helps optimize organization.
• Platinum Interior Design with Premium Wood Finish Accents
• Includes a dramatic combination of silver glossy walls offset by a beautiful wood finish material that is moisture- and stain-resistant. The platinum interior masks dirt to keep refrigerator looking pristine and showcases your ingredients beautifully.
• Full-Extension Self-Close FreshSeal™ Crispers
• Maintain optimal humidity levels to help keep produce at peak freshness. Brightly lit drawers open fully so you can see and easily access all your items.
• Full-Extension Self-Close Custom Temperature-Controlled Pantry Drawer
• Features four presets so you can customize temperature for meat/fish, cold drinks, deli/cheese and wine. Enjoy the effortless feel of self-close glides plus full-drawer extension.

Tech Specs

Certifications
Energy Rating	739
Energy Star® Qualified	No
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
ULe Environmentally Preferred Certified	Passed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
Dimensions
Capacity	23-4/5
Depth	80.01 cm, 31-1/2 in
Freezer Volume	178.29 l, 6.30 cu. ft.
Gross Weight	170.10 kg, 375 lbs
Height	182.56 cm, 71-7/8 in
Net Weight	161.93 kg, 357 lbs
Refrigerator Volume	495.25 l, 17.50 cu. ft.
Width	90.96 cm, 35-13/16 in
Configuration and Overview
Counter Depth	Yes
Number of Doors	3
Appearance
Cabinet Finish	Textured
Door Style	Contour
Handle Material	Metal
Hidden Hinge	Yes
LCD Touch Screen	No
Controls
Air Filter Indicator/Reset	Yes
Automatic Defrost	Yes
Control Location	Exterior Dispenser, Side Door
Control Lockout	Yes
Door Ajar/Open Alarm	Yes
LCD Touch Screen	No
Water Filter Indicator/Reset	Yes
Filter Details
Produce Preserver	Yes
Water Filter Indicator/Reset	Yes
Water Filter Location	Interior
Refrigerator Details
Deli Drawer	No
Number of Interior Shelves	4
Pantry Drawer	Yes
Supplementary Containers	Utility Compartment, Herb Tender™ Container
Freezer Details
Freezer Number of Shelves	1
Dispenser Details
Dispenser Options	Filtered Water, Control/Child Lock, Favorite Fill, Measured/Metered Fill, Night Light
Dispenser Type	Exterior Ice and Water
Types of Ice	Crushed/Cubed
Icemaker Details
Icemaker Location	Refrigerator Door
Details
Cooling Type	Dual Evaporator
Counter Depth	Yes
Exterior
Hidden Hinge	Yes
Number of Doors	3
Refrigerator Compartment
Liner Finish	Platinum
Number of Interior Shelves	4
Pantry Drawer	Yes
Shelf Supports	Flipper
Freezer Compartment
Freezer Number of Shelves	1
Light	LED
Filters
Fresh Flow Air Filter Included	Yes
Produce Preserver	Yes
Compatibility
Connectivity	No
Works With	No
Description
Refrigerator Type	French Door
Configuration
Door Style Configuration	French Door
Installation Configuration	Freestanding
Refrigeration Configuration	Refrigerator
Icemaker
Icemaker	Factory Installed
Icemaker Location	Refrigerator Door
AHAM Volumes And Shelf Area
Freezer Volume	6-3/10
Dispenser
Types of Ice	Crushed/Cubed

Manuals

DOWNLOAD OWNER'S MANUAL

DOWNLOAD WARRANTY

ARCHITECTURAL CAD ADDITIONAL DOCUMENTS

Details & Features

• 10K BTU Even-Heat Torch Burner
• Features an exclusive design that provides a small flame for delicate simmering and a larger one that distributes high heat across the whole pan for more even cooking.
• 20K BTU Professional Dual Ring Burner
• Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
• Removable Griddle Included
• Provides a one-piece flat surface that can be used on the right, left, or center of the cooktop surface, and is ideal for making a range of dishes from crepes to quesadillas.
• CookShield Finish
• Protects the cooktop from stains that may occur with high temperature cooking. The permanent finish makes it easy to wipe clean without harsh chemicals so it looks clean, bright and beautiful even longer.
• Multi-Finish Back-Lit Knobs
• Deliver a beautiful accent with pleasant LED lights that let you know when the burner is in use.
• 6K BTU Even-Heat Simmer Burner
• A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
• Electronic Ignition and Automatic Reignition
• Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
• Full-Width Cast-Iron Grates
• Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

• LP Conversion Kit Included - Allows you to convert the cooktop so it can be used with LP gas.

Tech Specs

Specifications
Dimensions
Cutout Depth	50.32 cm, 19-13/16 in
Cutout Depth Max	50.80 cm, 20.0 in
Cutout Depth Min	49.53 cm, 19-1/2 in
Cutout Height	13.34 cm, 5-1/4 in
Cutout Width	89.38 cm, 35-3/16 in
Cutout Width Max	90.49 cm, 35-5/8 in
Cutout Width Min	88.58 cm, 34-7/8 in
Depth	53.34 cm, 21.0 in
Height	9.37 cm, 3-11/16 in
Maximum Height	10.95 cm, 4-5/16 in
Width	92.08 cm, 36-1/4 in
Configuration and Overview
Cooktop Type	Standard
Fuel Type	Gas
Installs Over Built-In Oven	Yes
LP Convertible	Yes - Kit Included
Power Boost	No
Size	91.44 cm, 36 in
Controls
Control Location	Front
Infinite Heat Controls	Yes
Knob Color	Stainless Steel
Knob Type	Metal
Cooktop Details
Automatic Pan Detection	No
Center Rear Element-Burner Power	20,000 BTU
Cooktop Element Style	Sealed Burner
Cooktop Surface Color	Color Coordinated
Cooktop Surface Material	Stainless Steel
Downdraft Vent	No
Grate Details	Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	No
Ignition Type	Direct Spark Ignition
Left Front Element-Burner Power	12,000 BTU
Left Front Element-Burner Type	Burner
Left Rear Element-Burner Power	6000 BTU
Left Rear Element-Burner Type	Simmer
Number of Cooking Element-Burners	5
Number of Grates	3
Number of Open Bays	NA
Power Outage Compatible	Yes
Right Front Element-Burner Power	10,000 BTU
Right Front Element-Burner Type	Even Heat
Right Rear Element-Burner Type	Burner
Appearance
Digital Display	No
Certifications
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
UL	UL
Electrical
Hz	60
Power Cord Included	Yes
Features
Power Outage Compatible	Yes
EndecaProps
ProductOutletCategories	Cooking
Status Badge Espot CA	New
GDS
GPC Code	10001951
IsInvoiceUnit	true
IsOrderableUnit	true
Product Type	EA
UDEX	1100400623
isBaseUnit	true
isConsumerUnit	true

Manuals

WARRANTY

USE & CARE GUIDE

OVEN COOKTOP COMBINATIONS

OWNER'S MANUAL

INSTALLATION INSTRUCTIONS

Details & Features

• Perimeter Ventilation
• Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
• LED Task Lights
• Provide extra lighting over the cooking surface to help in the cooking process.
• Halogen Night Lights
• Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.
• 3-Speed Electronic Glass Touch Control with Boost Function (10 Min.)
• Provides electronic operation with visual feedback on settings and selections. Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.

• 600 CFM/65K BTU Threshold - Allows installation over any KitchenAid™ regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
• Easy In-line Conversion - Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.

Tech Specs

Specifications
Dimensions
Depth	50.01 cm, 19-11/16 in
Height	62.55 cm, 24-5/8 in
Width	91.44 cm, 36.0 in
Configuration and Overview
Hood Type	Wall Mount
Size	91.44 cm, 36 in
Details
Material	Stainless Steel
Night Light	Yes
Night Light Type	Halogen
Number of Night Light Settings	1
Number of Task Light Settings	1
Task Light Type	LED
Task Lighting	Yes
Ventilation System
Auto Function	Auto On and Speed Adjust
Blower Type	Centrifugal
Duct Direction	Vertical
Duct Outlet Size	6
Duct Type	Round
Filters	Grease Filters
Number of Speeds	3
Sound Max Speed	65.0
Sound Max Speed Sones	5-2/5
Sound Min Speed Sones	1-1/2
Sound Min Speed dBA	49-1/2
Certifications
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
UL	UL
EndecaProps
ProductOutletCategories	Cooking
Status Badge Espot CA	New
GDS
GPC Code	10005322
IsInvoiceUnit	true
IsOrderableUnit	true
Product Type	EA
UDEX	1100642102
isBaseUnit	true
isConsumerUnit	true

Manuals

VENTILATION PAIRING CHART

WARRANTY

USE & CARE GUIDE

Details & Features

• 44 dBA
• provides quiet cleaning without compromising performance, so there s no need to wait to run a wash cycle while entertaining and enjoying meals, even in open concept kitchens.
• Four Stemware Holders in Middle Rack
• secure wine glasses along the side of the rack to prevent them from moving around during the wash cycle.
• Express Wash Cycle
• cleans in less time, so you always have the dishes you need while prepping, cooking and entertaining.
• Sani Rinse option
• The Sani Rinse option lets you confidently wash important items with a high-temperature rinse that removes 99.999% of food soil bacteria.
• Top Controls
• are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
• Leak Detection System
• provides peace of mind with three levels of protection against potential sources of leaks, from multiple sensing points with a water flow monitor and drip tray. If the system detects a problem, the dishwasher will stop filling, drain the tub and alert that service is needed.

• FreeFlex™ Third Rack
• Advanced Clean Water Wash System
• Fan-Enabled ProDry™ System
• ProWash™ Cycle

Tech Specs

Certifications
ADA Compliant	No
CEE Tier Rating	Tier I
CUL	Yes
Energy Star Qualified	No
Energy Star® Qualified	No
NSF Certified	Yes
Prop 65	CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Star K Certified	Yes
Exterior Details
Control Panel Color	Black
Door Style	Flat
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Towel Bar
Magnetic Door	Yes
Details
Built-In Water Softener	No
Dishwasher Cycle Selection	Express Wash, Normal, ProWash™, Rinse Only, Tough
Dishwasher Option Selections	1-24 Hour Delay, Extended ProDry, Hi Temp Wash, ProDry™, Sani Rinse®, Top 2 Racks
Dishwasher Type	Built-In
Dispensers	Detergent and Rinse Aid
Drying System Type	Fan Dry with Heating Element
Fingerprint Resistant	Yes
Handle Material	Metal
Handle Type	Towel Bar
Number of Place Settings	16
Number of Racks	3
Number of Wash Levels	7
Number of Washarms	5
Rack Material	Nylon
Rinse Aid Dispenser Level Indicator	Yes
Sensor	Yes
Sound Package	Yes
True Hold Door	Yes
Tub Material	Stainless Steel
Tub Style	Built-in Tall Tub 24in.
Wash System	Clean Water Wash
Wash System Type	MicroFilter
Water Filtration	Yes
Dimensions
Depth	67.94 cm, 26-3/4 in
Depth Closed Excluding Handles	62.23 cm, 24-1/2 in
Depth Closed Including Handles	67.94 cm, 26-3/4 in
Depth With Door Open 90 Degree	129.54 cm, 51 in
Gross Weight	45.36 kg, 20.57 kg, 100 lbs, 45-7/20 lbs
Height	85.41 cm, 33-5/8 in
Net Weight	43.09 kg, 19.54 kg, 95 lbs, 43-839/10000 lbs
Width	60.64 cm, 23-7/8 in
Controls
Automatic Temperature Controls	Yes
Control Location	Hidden, Top
Control Type	Tap Touch with Display
End of Cycle Signal	Yes
Status Light	White
Rack Details
Culinary Basket	No
Lower Rack Cushion-Tip Tines	Yes
Lower Rack Extras	Sliding Tines, Stainless Steel Wash Arm
Lower Rack Fold-Down Tines	1 Adjustable, 1 Fold Down
Lower Rack Glides	Wheels
Lower Rack Style	Extended
Lower Rack Utility Basket	No
Second Level Rack Adjustable	2 Position-Removable
Second Level Rack Cushion-Tip Tines	Yes
Second Level Rack Extras	4 Stemware Holders, Stainless Steel Wash Arm
Second Level Rack Fold-Down Tines	1 Row 6 Position
Second Level Rack Glides	Ball Bearings
Silverware Basket Covers	Yes
Silverware Basket Location	Bottom Rack
Silverware Basket Type	Large In-the-Rack Basket
Third Level Rack Adjustable	No
Third Level Rack Glides	Satin Glides
Third Level Rack Removable	Yes
Third Level Rack Type	Third rack with dual rotating wash tubes
Cycles
Number of Wash Cycles	5
Installation Considerations
Hoses Included	Drain Hose
Interior Details
Interior Light	No
Electrical
Power Cord Included	No
Silverware Basket Details
Silverware Basket Covers	Yes
Silverware Basket Location	Bottom Rack

Manuals

VIEW FULL POLICY*

Details & Features

• Dishwasher-Safe Air Fry Basket
• Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
• Self-Close Doors
• Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
• Self-Cleaning Cycle
• Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
• FIT System Limited Guarantee
• Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
• EasyConvect™ Conversion System
• Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
• Even-Heat™ Preheat
• Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

• Air Fry Mode
• Even-Heat™ True Convection
• Integrated Meat Thermometer
• SatinGlide™ Roll-Out Extension Rack

Tech Specs

Certifications
ADA Compliant	No, No, No
CUL	Yes, Yes, Yes
Star K Certified	Star K Certified, Star K Certified, Star K Certified
UL	Yes, Yes, Yes
Exterior Details
Door Lock	Yes, Yes, Yes
Door Type	Metal & Glass, Metal & Glass, Metal & Glass
Handle Color	Stainless Steel, Stainless Steel, Stainless Steel
Handle Material	Metal, Metal, Metal
Oven Cavity Details
Bake Element Power	2800W, 2800W, 2800W
Broiler Element Power	4000W, 4000W, 4000W
Broiler Location	Top of Oven, Top of Oven, Top of Oven
Convection	Yes, Yes, Yes
Convection Element Power	3200 W, 3200 W, 3200 W, 3200 W, 3200 W, 3200 W, 3200 W, 3200 W
Convection Element Type	True Convection, True Convection, True Convection
Convection Functions	Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion
Convection Power	1,200 W, 1,200 W, 1,200 W, 1,200 W
Cooking Power	900 W, 900 W, 900 W, 900 W, 900 W, 900 W, 900 W, 900 W
Door Broil Position	Closed, Closed, Closed
Door Lock	Yes
Hidden Bake Element	Yes, Yes, Yes
Interior Coating	Porcelain, Porcelain, Porcelain
Interior Color	Blue, Blue, Blue
Number of Oven Lights	2, 2, 2
Number of Oven Racks	3, 3, 3
Number of Rack Guides	6, 6, 6
Oven Cleaning Type	Self-Cleaning, Self-Cleaning, Self-Cleaning
Oven Light Type	Halogen, Halogen
Self-Cleaning Oven Racks	No, No, No
Dimensions
Cutout Depth	60.96 cm, 60.96 cm, 24 in, 24 in
Cutout Height	104.94 cm, 104.94 cm, 41-313/1000 in, 41-313/1000 in
Cutout Width	64.77 cm, 64.77 cm, 25-1/2 in, 25-1/2 in
Depth	68.90 cm, 68.90 cm, 27-1/8 in, 27-1/8 in
Depth Closed Excluding Handles	62.23 cm, 62.23 cm, 24-1/2 in, 24-1/2 in
Depth Closed Including Handles	68.90 cm, 68.90 cm, 27-1/8 in, 27-1/8 in
Depth With Door Open 90 Degree	118.74 cm, 118.74 cm, 46-3/4 in, 46-3/4 in
Gross Weight	111-14/25 kg, 111-14/25 kg, 180 kg, 180 kg, 111-14/25 kg, 111-14/25 kg, 246 kg, 246 kg, 81-63/100 kg, 81-63/100 kg, 111-14/25 kg, 111-14/25 kg, 180 kg, 180 kg, 111-14/25 kg, 111-14/25 kg, 246 kg, 246 kg, 81-63/100 kg, 81-63/100 kg
Height	107.95 cm, 107.95 cm, 42-1/2 in, 42-1/2 in
Microwave Interior Depth	41.91 cm, 16-1/2 in
Microwave Interior Height	20.96 cm, 8-1/4 in
Microwave Interior Width	44.77 cm, 17-5/8 in
Net Weight	102-247/500 kg, 102-247/500 kg, 160 kg, 160 kg, 102-247/500 kg, 102-247/500 kg, 226 kg, 226 kg, 72-703/1250 kg, 72-703/1250 kg, 102-247/500 kg, 102-247/500 kg, 160 kg, 160 kg, 102-247/500 kg, 102-247/500 kg, 226 kg, 226 kg, 72-703/1250 kg, 72-703/1250 kg
Oven Capacity	121.69 l, 121.69 l, 121.69 l, 4.3 cu. ft., 4.3 cu. ft., 4.3 cu. ft.
Oven Interior Depth	48.26 cm, 48.26 cm, 19 in, 19 in
Oven Interior Height	45.72 cm, 45.72 cm, 18 in, 18 in
Oven Interior Width	55.88 cm, 55.88 cm, 22 in, 22 in
Width	67.94 cm, 67.94 cm, 26-3/4 in, 26-3/4 in
Microwave Details
Door Release	Handle, Handle, Handle
Grill	Yes
Grill Power	1,600 W, 1,600 W, 1,600 W, 1,600 W
Microwave Capacity	39.62 l, 39.62 l, 39.62 l, 1.4 cu. ft., 1.4 cu. ft., 1.4 cu. ft.
Microwave Interior Depth	41.91 cm, 16-1/2 in
Microwave Interior Height	20.96 cm, 8-1/4 in
Microwave Interior Light	Halogen
Microwave Interior Width	44.77 cm, 17-5/8 in
Sensor Cooking	Yes - Microwave, Yes - Microwave, Yes - Microwave
Turntable Diameter Size	35.88 cm, 14-1/8 in
Details
Convection Power	1,200 W, 1,200 W, 1,200 W, 1,200 W
Flush Installation Approved	Yes, Yes, Yes
Fuel Type	Electric, Electric, Electric
Grill	Yes, Yes, Yes
Microwave Interior Light	Halogen
Number of Microwave Racks	2
Oven Automatic Shut-Off	Yes
Oven Selections	Air Fry, Auto On, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Language Conversion, Proofing, Rapid Preheat, Sabbath Mode, Start Time, Temperature Probe, Temperature-Sensor Baking, Timer
Turntable	Yes, Yes, Yes
Turntable Diameter Size	35.88 cm, 14-1/8 in
Smart Compatibility
Connectivity	No, No, No
Works With	No, No, No
Controls
Control Type	Electronic Touch, Electronic Touch, Electronic Touch
Display Color	White, White, White
Electronic Display Type	Digital, Digital
Language Conversion	English/French/Spanish, English/French/Spanish, English/French/Spanish
Microwave Selections	Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer
Electrical
Power Cord Included	No, No

Manuals

DOWNLOAD OWNER'S MANUAL

DOWNLOAD WARRANTY

DIMENSION GUIDE ADDITIONAL DOCUMENTS

VIEW FULL POLICY*

CONTROL GUIDE

QUICK START GUIDE

QUICK START GUIDE ADDITIONAL DOCUMENTS

DOWNLOAD DIMENSION GUIDE
